Epiphone AJ220 Fishman Presys Pickup Installation

14-6-23-lennonepi-01

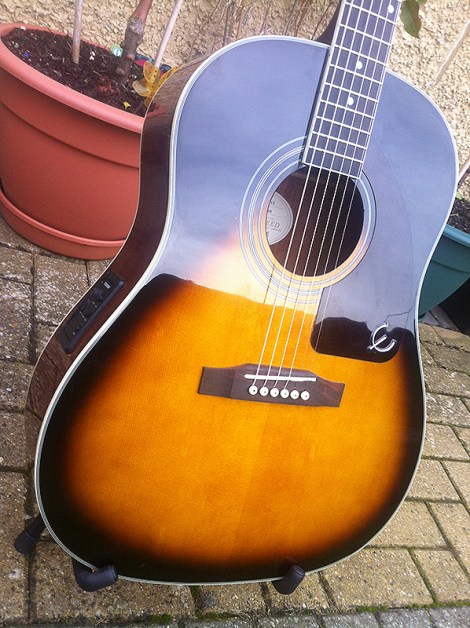

Here’s a few photos of an Epiphone AJ220 pickup installation a I did. The pick was a Fishmam Presys system with EQ box, pickup and end-pin jack.

14-6-23-lennonepi-02



14-6-23-lennonepi-04

14-6-23-lennonepi-05

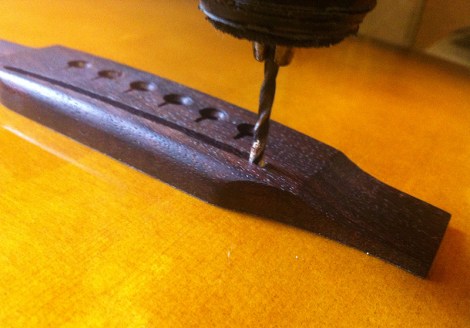

Drilling bridge hole for pickup wire in saddle slot.

14-6-23-lennonepi-06

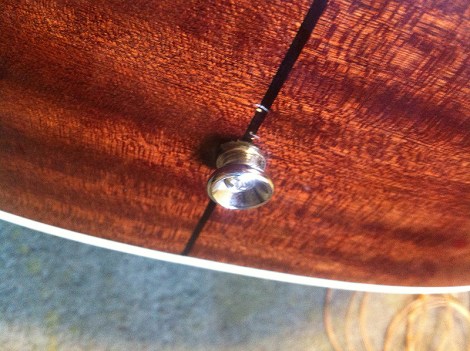

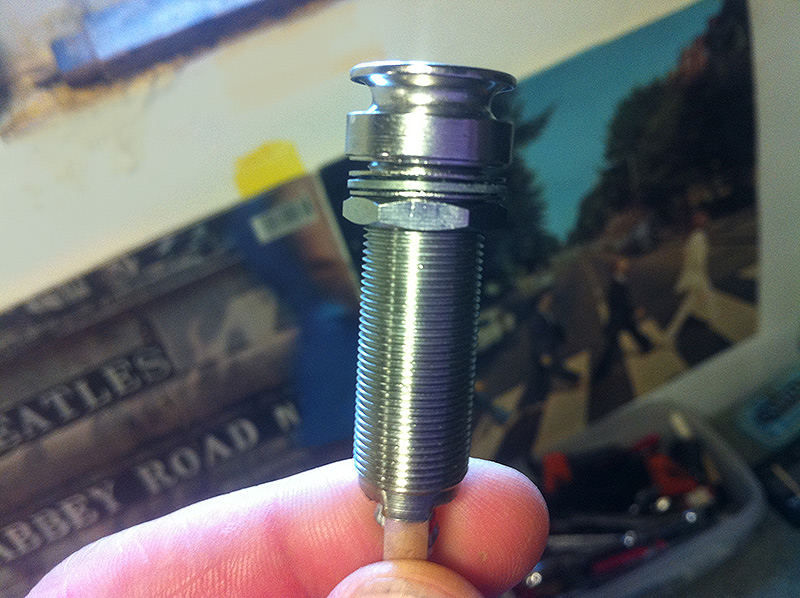

The Fishman Presys system has and end-pin jack that requires fitting where the existing strap button resides.

14-6-23-lennonepi-07

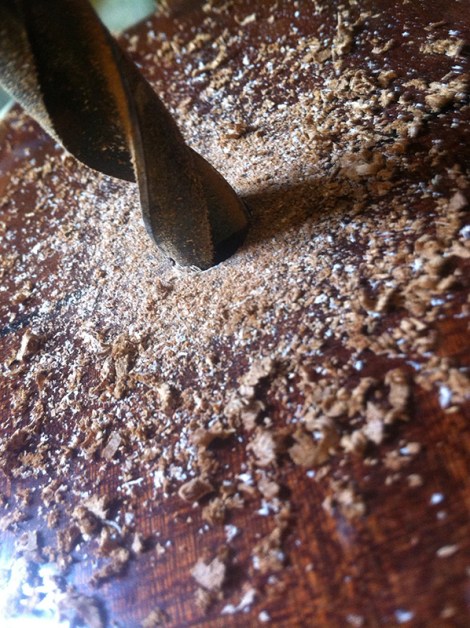

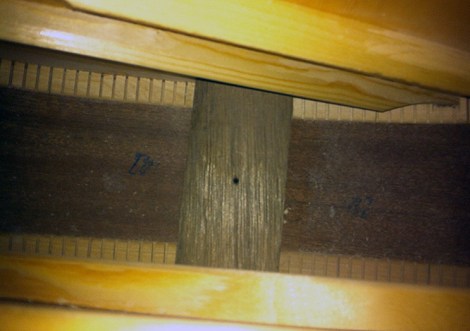

Pilot hole drilled through.

14-6-23-lennonepi-08

14-6-23-lennonepi-09

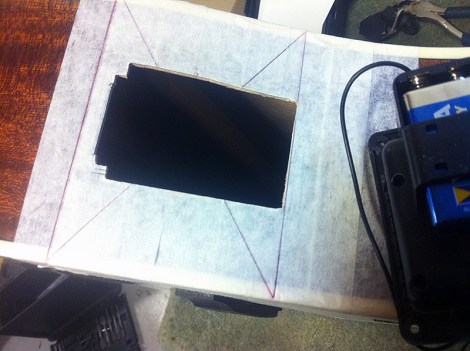

Here I have marked out on the side of the guitar the hole necessary to accommodate the EQ box.

14-6-23-lennonepi-10
