Tanglewood TW55 Heritage Neck Reset

img_3195

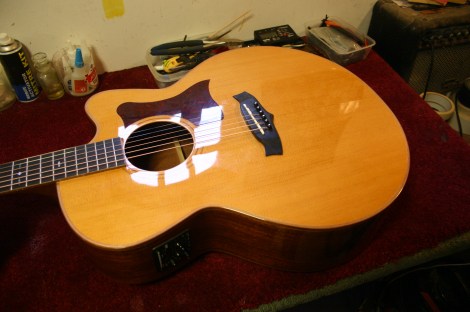

I really like these Tanglewood TW55 Heritage acoustics; decorative bindings in Walnut and Rosewood, Piano Black Ebony fingerboards, AAA grade Engelmann Spruce tops (or AAA Canadian Red Cedar). B-Band A5 EQ systems, luxury Waverly style hi ratio machine heads etc . . .

They are just over £1000 new, but you can pick them up second hand for only a couple hundred quid, there’s a lot of second hand ones knocking about and there’s reason for it. They all seem to develop a pretty bad belly hump raising the action and making the guitar virtually unplayable. There doesn’t appear to be sufficient internal bracing to keep the top flat, but this is also one of the reasons I think they sound so good.

img_3197

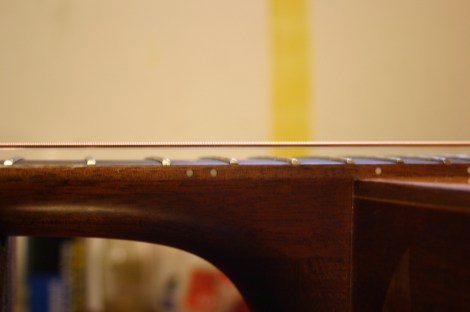

On this one the action is over 8mm at the 12th fret and not much room at the saddle to take it down.

img_3198

You can seethe belly hump here against a straight edge.

img_3200

img_3201

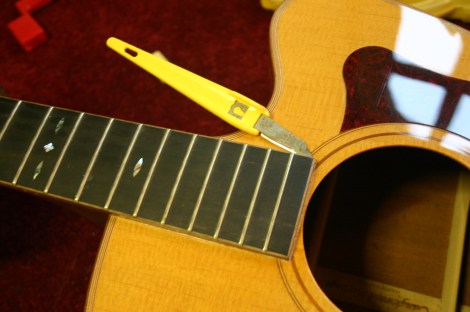

I don’t what to start adding bracing inside the guitar as this will kill it’s sound. It has amazing sustain and resonance. So this neck needs to come off so we can change the angle and get this thing playing again.

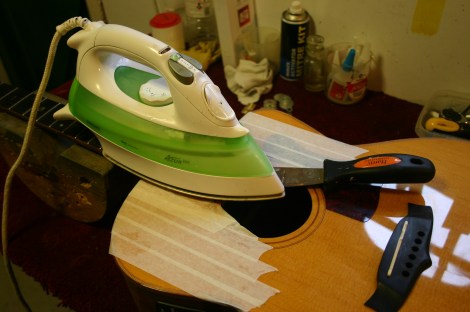

img_3202

To loose the glue hold on the tongue I’m using a very strange device I found in my house under the stairs. You plug it in and it gets hot and steam shoots out of it. What will they think of next.

img_3203

Carefully does it.

img_3204



img_3205

Almost there!

img_3206

With the tongue removed it’s time to fire some steam into the neck joint. I’ve disassembled a Tanglewood before and the neck was held on with three large dowels, so I’m assuming this is the same. If this had a dove tail joint I would have picked the 13th/14th fret instead.

img_3207

Drilling into the neck pocket

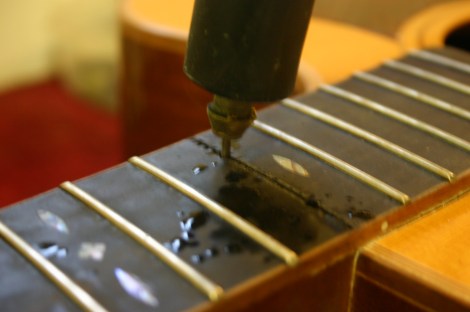

img_3208img_3209

Steam going in now for about ten minutes and I can smell Titebond or some kind of alphatic resin.

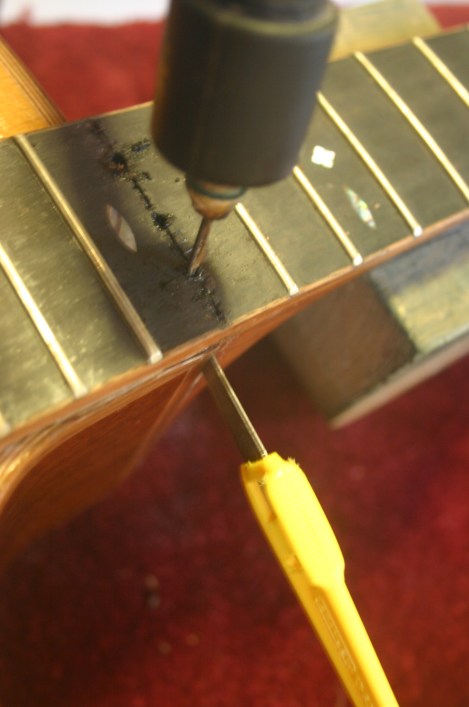

img_3210

Starting to move.

img_3212img_3213

Here we go!

img_3214

It was a dovetail after all.

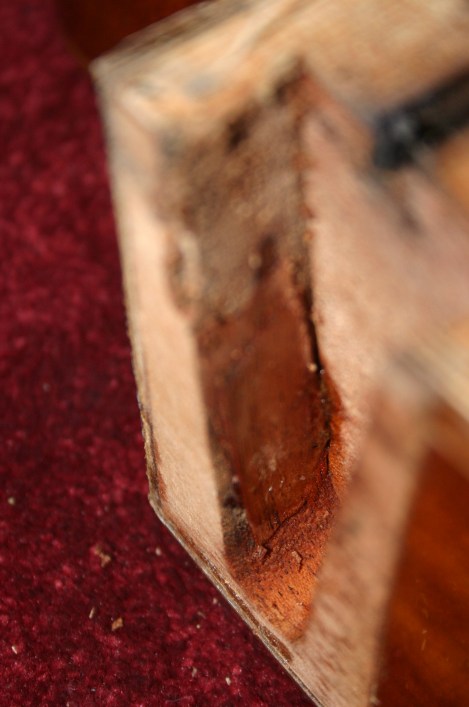

img_3215img_3216img_3217

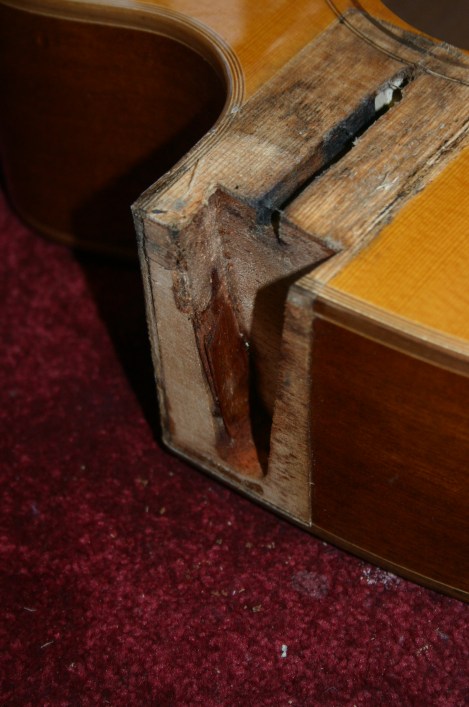

Bit of mahogany shim in there to help for a good tight joint.

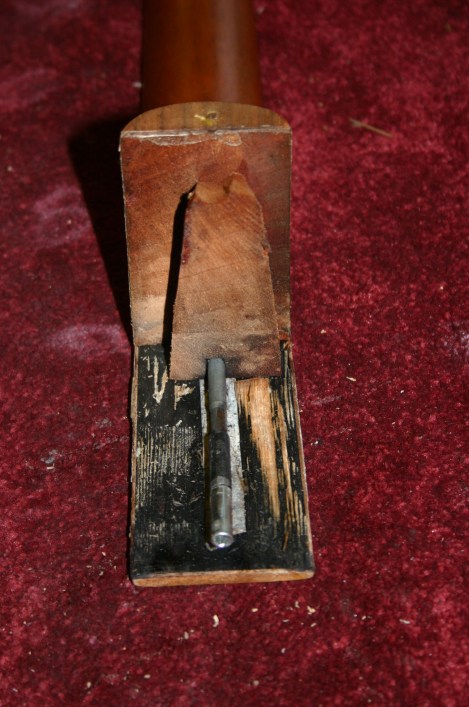

img_3218img_3219

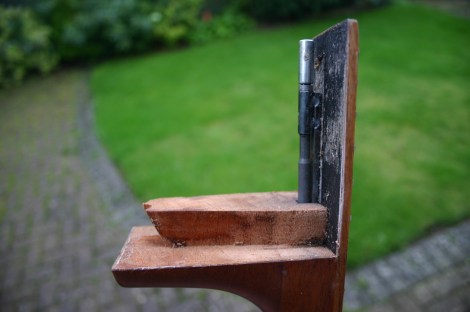

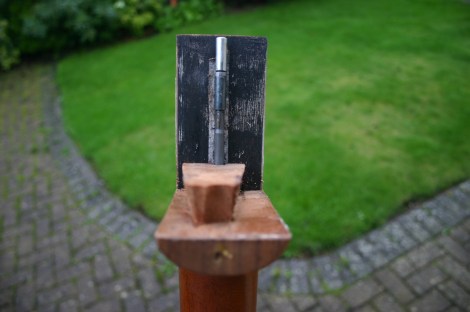

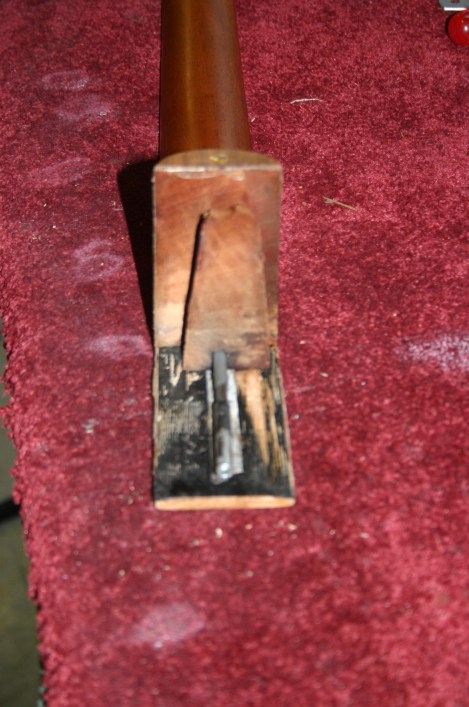

Very strange tenon, offset to once side with a scoop missing out of the top.

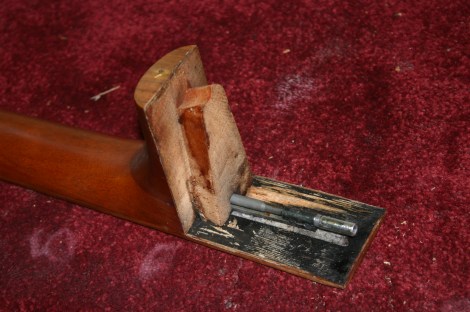

img_3220img_3222img_3223img_3224

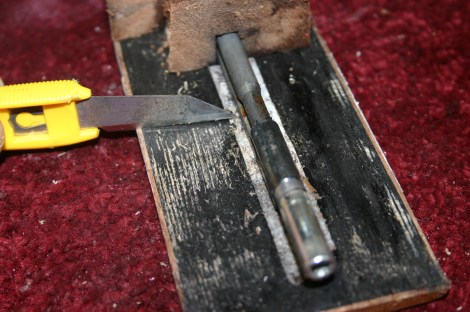

Cleaning up some of the glue around the trussrod.

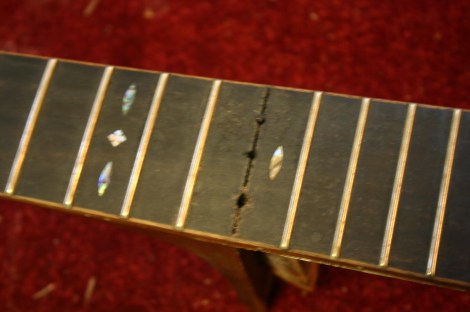

img_3225img_3226img_3227img_3229

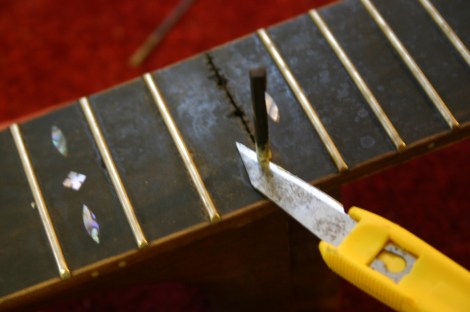

Let’s patch these holes with some ebony and dust. And put a new fret in.

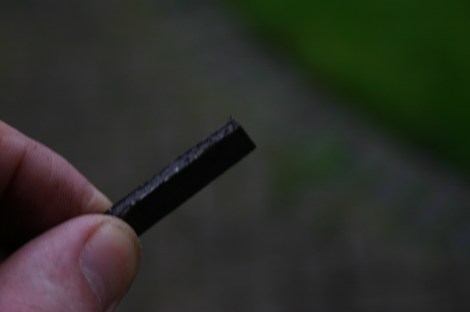

img_3230img_3231img_3232

f_3253

Neck re-angled and glued with a tongue shim, fret dress and a new 1.5mm action at the 12th fret – and It still sings. More pics to follow . . .
