Fixing Strat Neck Marker dots with a Chopstick

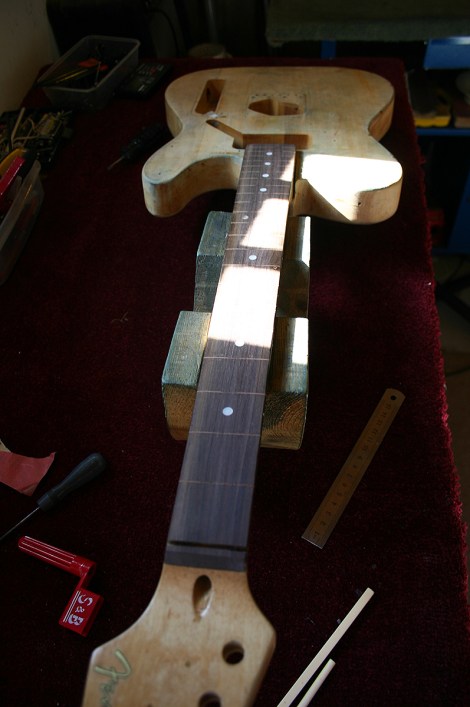

This Strat neck is ready for a full refret, but first we need to fix one of the dot markers on the 12th fret.

IMG_3111

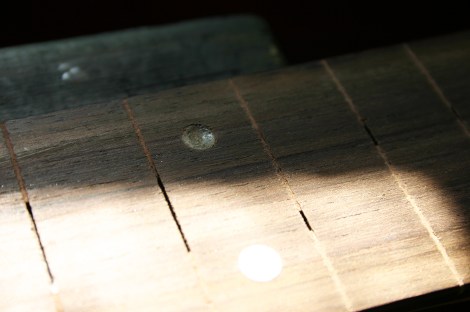

Looks to have had a bad repair in the past, and the plastic has perished.

IMG_3113

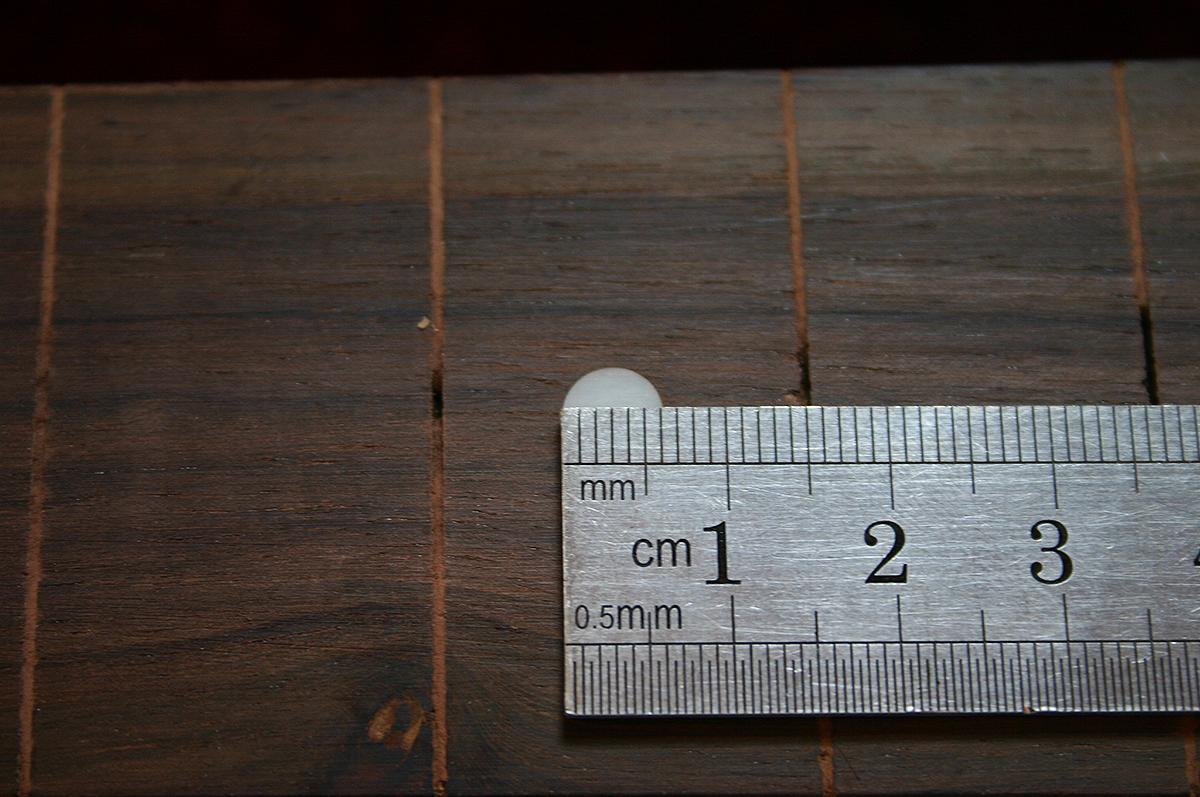

The dot markers measure 6mm diameter.

IMG_3114

This old chop stick should do the job and it’s nearly the right size, but it square.

IMG_3115

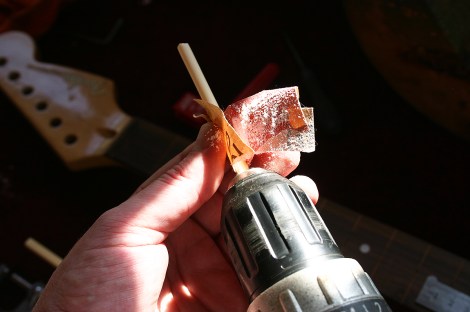

Let’s put this in the drill and run it through some sandpaper.

IMG_3117

Only takes a minute or two.

IMG_3118

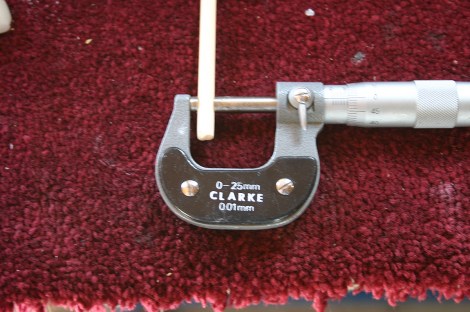

Reading 6mm on the micrometer.

IMG_3119

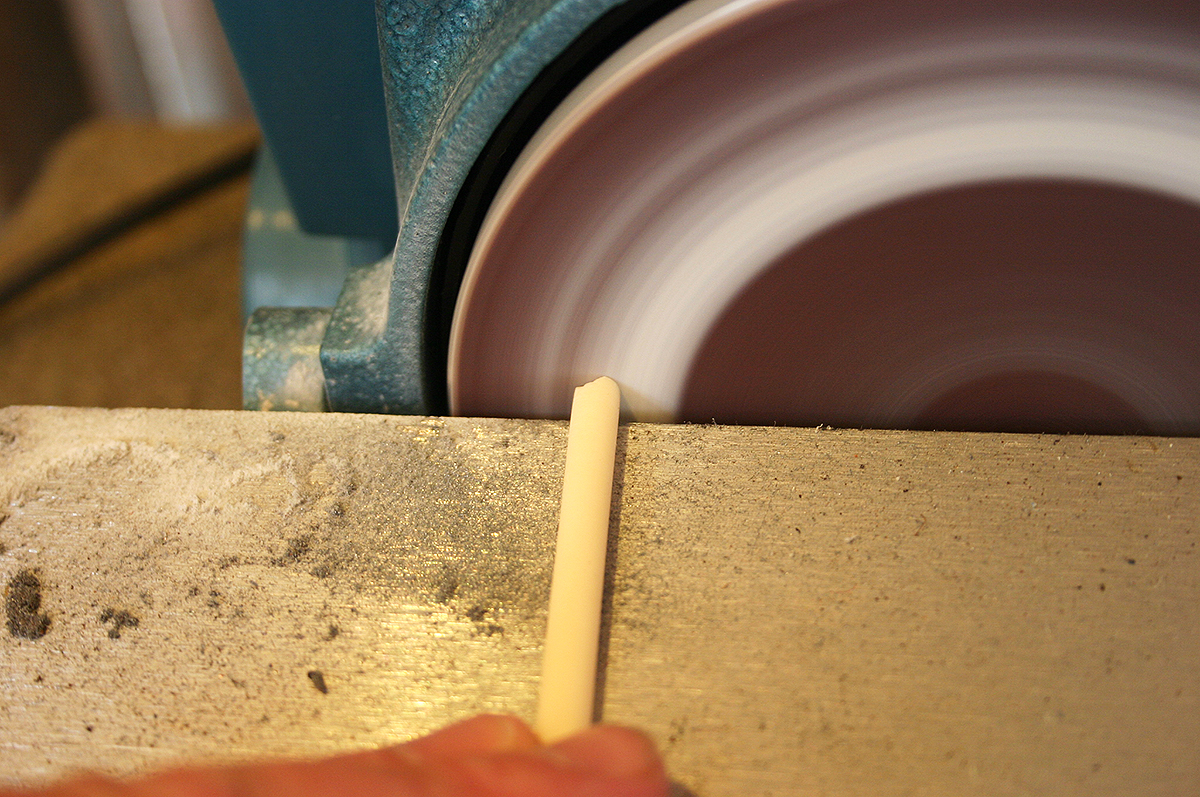

Let’s flatten the end of on the circular sander.

IMG_3120

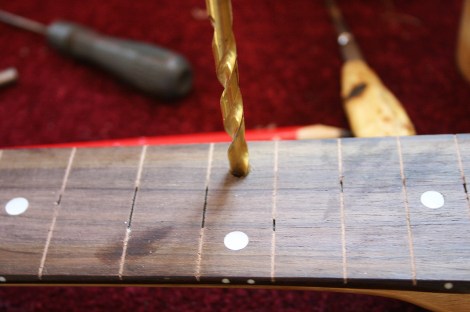

6mm drill to take out what remains of the old marker.

IMG_3122

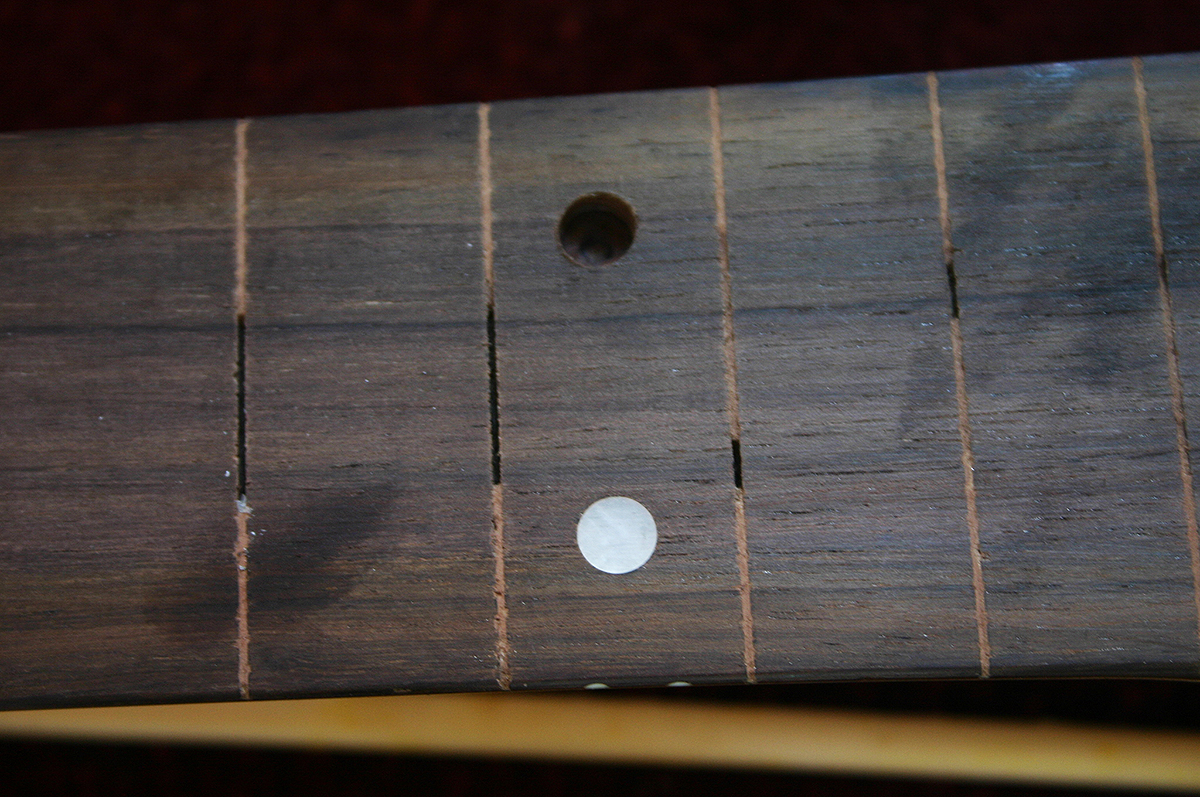

Nice clean hole here.

IMG_3124

Hacksaw the end off 2 or 3mm.

IMG_3125

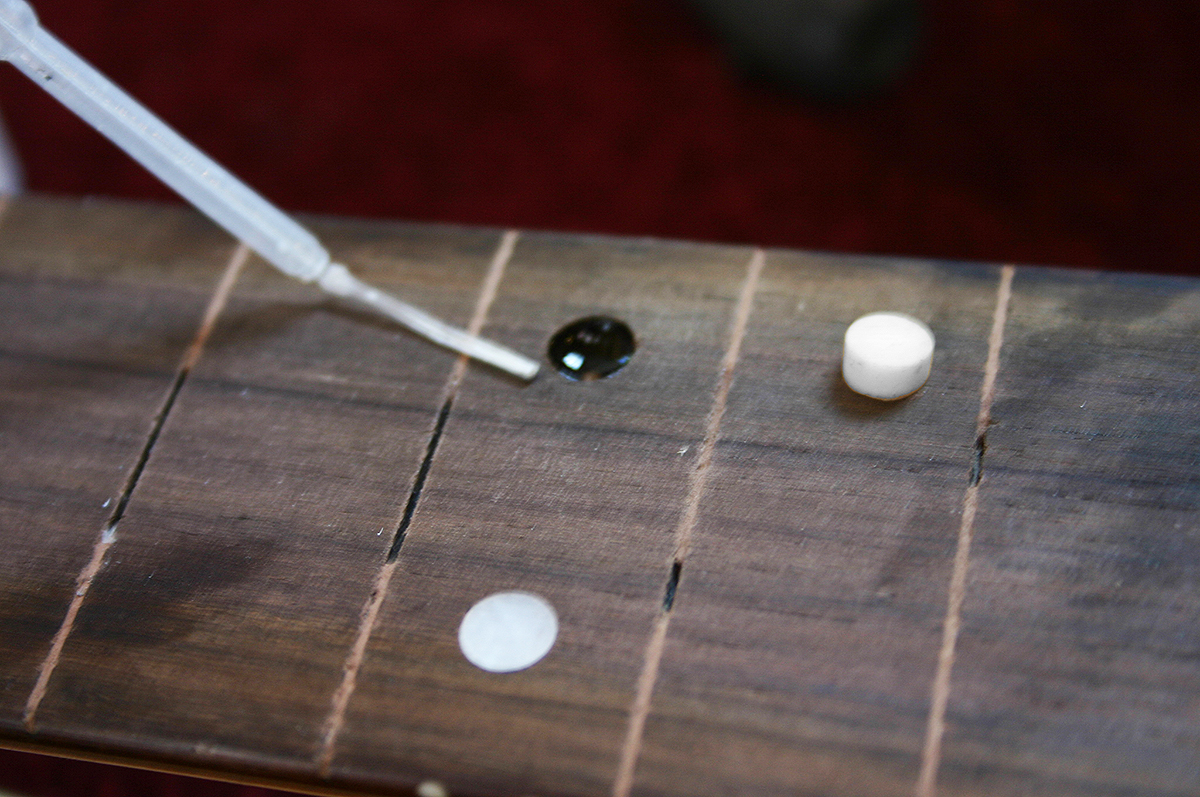

Drop of glue.

IMG_3127

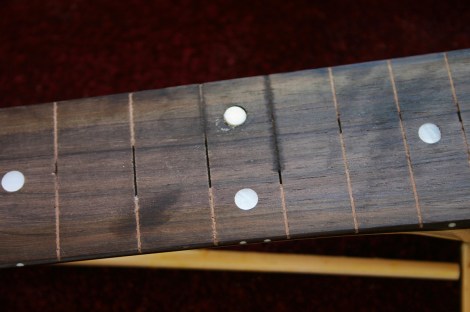

Leave to set.

IMG_3128

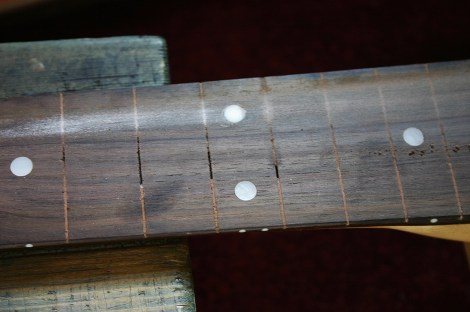

Sand flat along the fingerboard.

IMG_3129

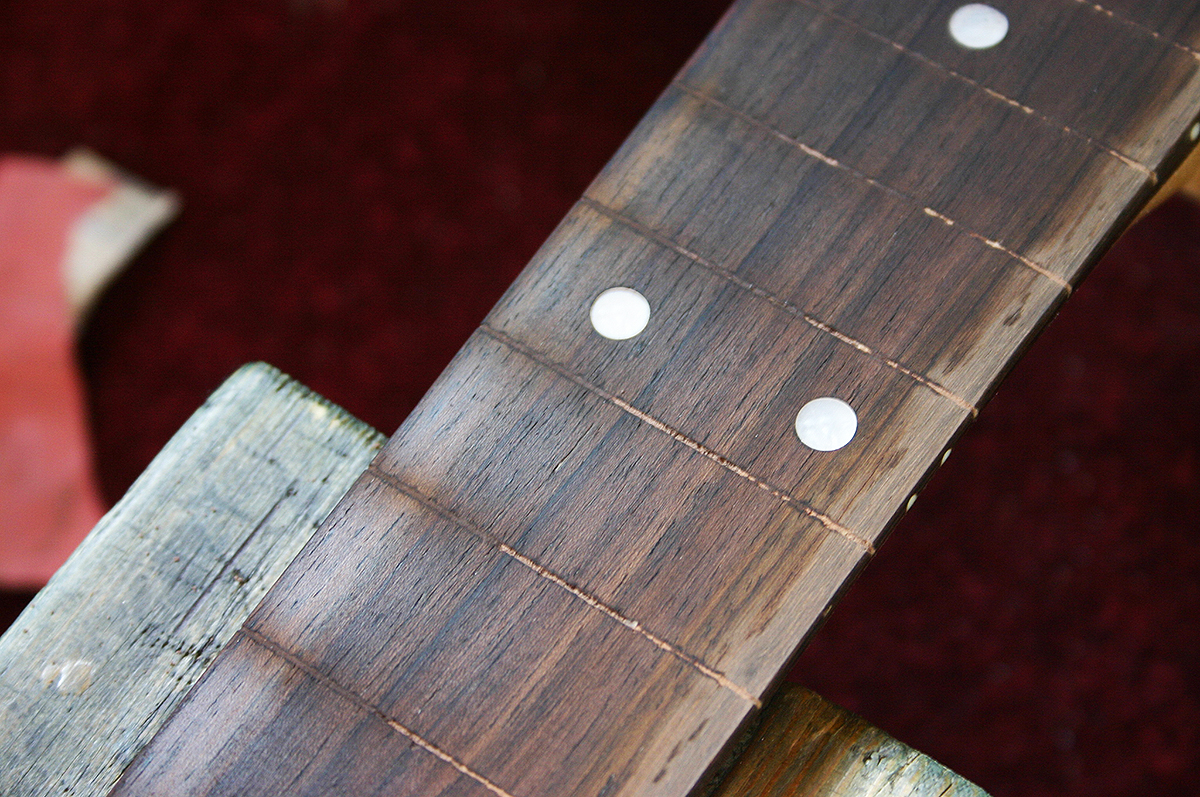

New fret marker.

IMG_3131
