Maple Cap Strat with Don Lace Pickups & Eric Clapton Mid Boost Circuit.

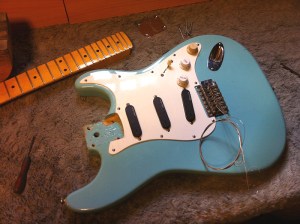

Good UK guitar tech
The Fender Eric Clapton signature Stratocaster with active pickups mid boost overdrive is just shy of £1,400. If you are wanting a Clapton Strat it is much more cost effective to have the mid boost circuit installed aftermarket.

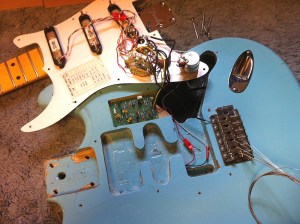

Guitar setups in the UK

The mid boost circuit gives you 25db of boost and changes the traditional Strat twangy sound into a thicker more Les Paul tone – ideal for solos. You can pick up a mid boost kit for around £50 on eBay and this includes the 25 DB Pre amp circuit, Tbx Tone Control, One Volume Control, a standard Tone Control, Output jack, Tone knob, and all of the other parts you need to convert your guitar into a Clapton custom. This kit is made straight from Fender. The only thing lacking in the kit are clear installation instruction. Please refer to the diagram below:

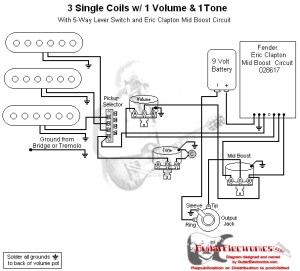

Clapton Mid boost installation instructions.

Clapton Mid boost installation instructions.

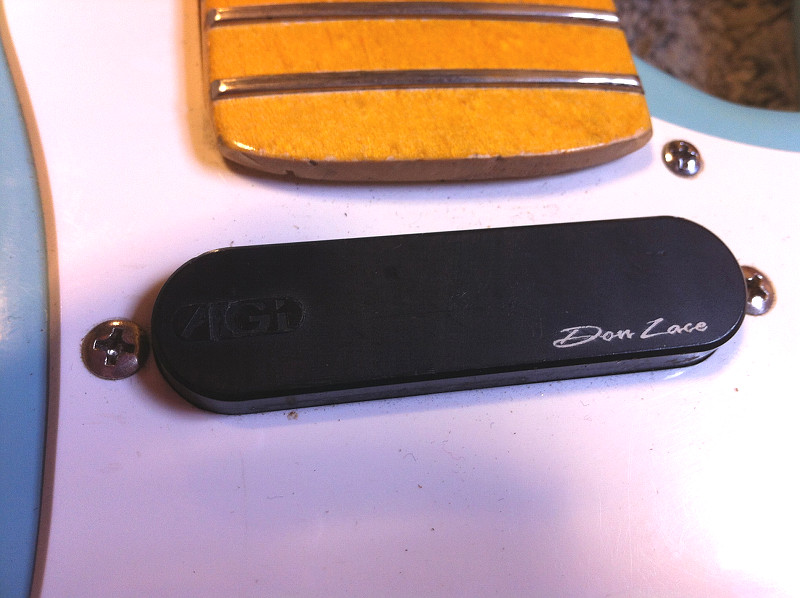

Don Lace S100 pickups

You will need to use a set of noiseless pickups with the Clapton boost. Ordinary single coil pickups will sound terrible when the boost is turned up to full, as the circuit will also amplify any electrical interference. I recommend using either Fender Noiseless, Kinman or Lace Senor pickups. The pickups used in the build are one of the earliest noiseless Lace Senors made by Don Lace, S100 pickups.

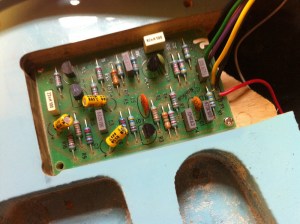

Clapton Mid Boost Installation

The boost circuit needs to be physically mounted inside the guitar body somewhere. A good place is under the scratch plate just above the pickup selector. If you don’t want to use a router, sometimes it can be possible to mount the board in the control cavity (if there is space).

Clapton Mid Boost Installation

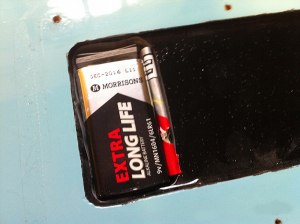

Unusually this Strat body has been converted into a hard tail by neutering the bridge block (in this case a large brass block) with epoxy resin. A good place to mount the 9v battery with easy access.

You can also mount a Clapton boost in a pedal, it’s very easy to do. I use a bespoke Clapton boost pedal as a pre-amp for a passive piezo acoustic guitar pickup with excellent results.

Here’s a clip of Cream playing at the Royal Albert Hall is 2005. See if you can spot when Eric is playing  with the boost on.

And Sunshine of Your Love – at 2:10.

Advertisements

2 responses to “Maple Cap Strat with Don Lace Pickups & Eric Clapton Mid Boost Circuit.

  1. Hi John, I have yet to find a set a pickups it doesn’t work well with. I use the boost circuit mounted in a floor pedal to balance a passive piezo pickup in an acoustic guitar with excellent results.
